Philips Screen Configuration for Signage

Philips Screen Configuration for Signage

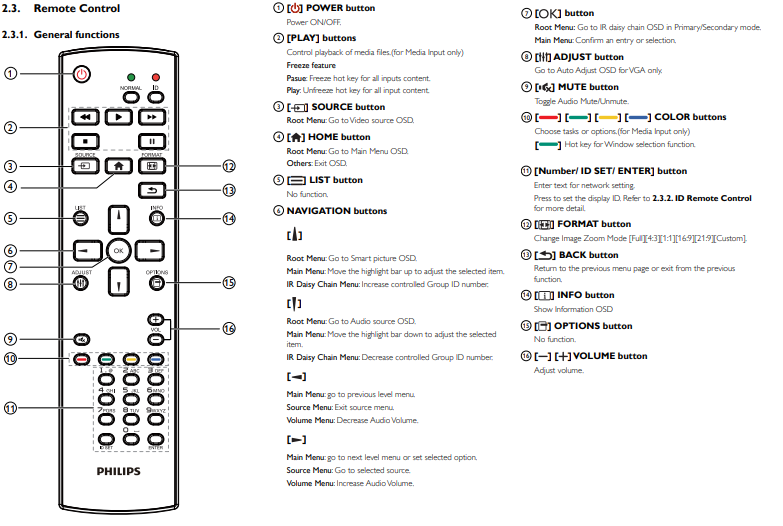

Philips Remote



Initial Screen Setup

This may or may not be applicable - if the screen has been preconfigured by us or the supplier, this step won't apply.
  1. Connect the screen to power
    1. Welcome
    2. Select language with Up and Down arrows
    3. Once selected, Right Arrow, Click Start
  2. Network Settings (this can be skipped and completed later)
    1. Select either Wifi or Ethernet depending on your requirements
    2. Wifi
      1. Right Arrow to Next
        1. Select WiFi Access Point
      2. Type in Password (press Return button to remove keyboard)
      3. Select Next
  3. Signage Display Settings
    1. Navigate to Skip
  4. Setup Complete
    1. Click Finish

Philips Configuration

Set Screen to Automatically Run Fusion Signage When Turned On

  1. Home -> Configuration1 -> Boot on source -> Action
  2. Set Input = Custom

Set Screen to Automatically Turn on After an Unplanned Power Outage.

  1. Home -> Configuration1 -> Switch on state = Force On

Set Screen to correct orientation

  1. Home -> Configuration2 -> System Rotation -> Landscape or Portrait

Set power mode on screen

  1. Home -> Advanced option -> Power Save = Mode 4

Set Schedule on Screen to Turn On And Off Automatically

  1. Home -> Advanced Option -> Schedule -> Action

Tiling Multiple Screens in a Video Wall Configuration

  1. Connect other screens using DVI-D or Displayport daisy chain as per user manual
  2. Home-> Advanced Option -> Tiling -> Action
Configure all screens accordingly as per user manual.
